Excellent Live-Cell Confocal Once the Environmental Control is Dialed In

August 12, 2026

BlueskyReddit
Rice University
Bioengineering
Postdoctoral Researcher

Overall

Performance

Ease-of-Optimization

What do these ratings mean?
Write a Review

Company:

Carl Zeiss Microscopy

Product Name:

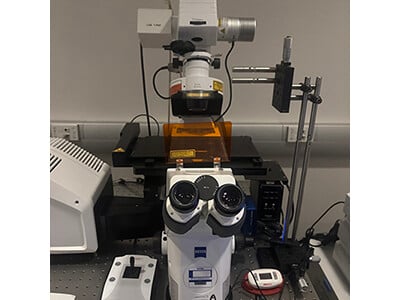

LSM 900 Confocal Laser Scanning Microscope, inverted, with T-PMT

We image [PIEZO1 localization and calcium dynamics] in live primary [B cells] on glass-bottom dishes over [30–60 min] time series, alongside fixed-cell immunofluorescence of the same targets. Keeping cells healthy through a long acquisition while holding photobleaching low is the central technical requirement of our imaging work.

Experimental Design and Results Summary

Performance, Range, and Accuracy

Optical sectioning and signal-to-noise are what you expect from a Zeiss LSM — we resolve membrane and vesicular structures cleanly at 63× and can run at low laser power without losing usable signal, which is what makes long time series possible. The transmitted-light PMT running simultaneously with fluorescence is more useful than it sounds: a co-registered brightfield channel lets us confirm cell health frame by frame instead of discovering afterward that a cell was dying. Z-stack registration is stable across our acquisition windows.

Throughput, Workflow Efficiency, and Automation

Not a high-throughput instrument and we don't use it as one — it's a careful, one-dish-at-a-time platform. ZEN's multi-position and time-series functions let us leave a run going unattended once configured. Setting up a new experiment type takes real time; running an established protocol is fast. Realistically we image 10 conditions per session.

Sample Integrity and Consumable Requirements

The Okolab stage-top incubator is essential — with temperature and [CO₂/humidity] control cells stay healthy through the full time series, and health degraded visibly on the rare sessions we ran without it. We image in Live Cell Imaging Solution on [35 mm glass-bottom dishes]; consumable cost is dominated by those dishes and immersion oil rather than anything instrument-specific.

Footprint, Facilities, and Daily Maintenance

Large footprint on a vibration-isolation table with a dedicated laser controller and PC — this needs a proper room, not a corner of a shared bench. It's sensitive to room vibration and temperature swings, so facility stability matters. Daily upkeep is objective cleaning, laser warm-up, and correct shutdown order; laser hours and alignment sit on a service contract.

Connectivity, Data Output, and Software Compliance

ZEN produces .czi files with full metadata, so acquisition settings travel with the data and methods reporting is straightforward. OME-TIFF export works for downstream analysis and Fiji/ImageJ reads .czi via Bio-Formats without trouble. Criticism: ZEN is heavy, Windows-only, and licensing for offline analysis seats is an extra cost and an extra conversation with the vendor.

Additional Advice

Budget for environmental control from the start rather than adding it later — a stage-top incubator isn't optional for live work of any length. Run the T-PMT channel even when you think you don't need it; it costs nothing and tells you when a cell was unhealthy. Pick a laser power and dwell time you can sustain across the whole time series rather than optimizing for a beautiful first frame.

Image Gallery

Summary

The Good

Outstanding image quality at low laser power, simultaneous transmitted-light channel, rich .czi metadata, stable long-timeseries performance with proper environmental control.

The Bad

Large facility requirements and cost, ZEN is heavy and Windows-only with licensing friction, and it's low-throughput by design.

The Bottom Line

If live-cell confocal is central to your science and you have the room and service budget, this platform delivers — plan the incubator and vibration isolation into the purchase, not as afterthoughts.
