A Guide to Laboratory Cold Storage

Reliable cold storage is fundamental to preserving the integrity of sensitive biological materials, from cell lines and reagents to clinical specimens and experimental samples. With a broad range of technologies available, from standard laboratory refrigerators to ultra-low temperature and cryogenic freezers, choosing the right system requires careful consideration of performance, capacity, and safety features. As research demands grow and regulatory requirements tighten, the role of advanced monitoring, energy efficiency, and automation becomes increasingly relevant. This guide explores some key factors to consider when selecting laboratory cold storage solutions tailored to your scientific and operational needs.

Cold storage equipment types

Refrigerators

General-purpose laboratory refrigerators are designed to store media, reagents, and biological samples at controlled temperatures ranging from 2 °C to 10 °C. They comprise a broad class of cooling equipment and come in a variety of different formats.

Compact refrigerators, such as undercounter and countertop models, offer space-saving footprints that allow the flexibility to be placed near workstations and lab benches for frequent and convenient access.

Solid and glass doors are common options. Solid doors provide greater thermal insulation, whereas glass doors allow users to quickly see the stored contents at the cost of higher energy consumption.

Useful features common to refrigerators include LED interior lighting, digital temperature controllers, access ports for probes, and integrated alarm and monitoring systems for safety and compliance. Many models also offer stainless steel interiors for enhanced durability and chemical resistance.

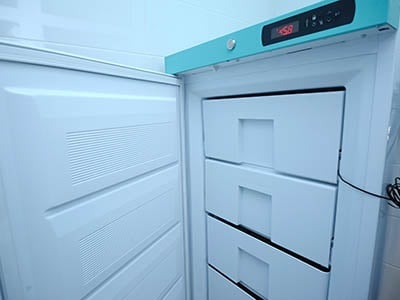

Freezers

For sensitive biological materials that require storage at a lower temperature, laboratory freezers enable a cooling range between -10 °C to -30 °C. These systems generally rely on well-insulated enclosures, thermostatic controls, and forced-air or static cooling methods to ensure consistent temperature performance and uniformity across the stored materials.

As with refrigerators, freezers come in several formats to accommodate specific needs. Compact undercounter and countertop freezers are ideal for flexible positioning and easy access to working areas. Door types, which can depend on the size of the freezer, can vary with single or double doors.

A wide variety of useful features are often offered for different freezer models. Among these are LED lighting, automatic defrost with condensate removal, stainless-steel interiors, epoxy-coated adjustable shelves, self-closing doors, and rapid cool-down upon door closing. Features for safety and monitoring can include onboard alarms, battery-backed controllers, remote alarm contacts, setpoint security via keyed master switches, and compatibility with wireless monitoring systems.

Ultra-low temperature freezers

Ultra-low temperature (ULT) freezers generally have operating temperatures from -45°C to -90°C and are ideal for providing thermal stability at precisely at -80 °C. Unlike standard freezers, which are sufficient for short-term storage of reagents or some pharmaceuticals, ULT freezers are designed for the long-term preservation of very sensitive materials, including nucleic acids, cells and tissues, clinical samples, enzymes, vaccines, and biospecimens, which can degrade or denature rapidly at higher temperatures.

Modern ULT systems often utilize dual compressor or multi-stage cascade cooling systems. These multi-stage or redundant compressor setups are particularly useful for high-capacity applications or critical storage needs, offering enhanced cooling performance and fail-safe reliability in the event of a component failure. These freezers also typically maintain precise temperature uniformity and stability within ±5–10 °C throughout the storage chamber.

Common features across leading ULT models include temperature uniformity, energy optimization, active monitoring, digital alarm systems, and validated compliance with global guidelines for sample storage.

Controlled-rate freezers

Controlled-rate freezers (CRFs) are specialized cryopreservation systems designed to cool biological samples at precisely regulated rates (typically measured in °C per minute). They generally cool down to temperatures ranging from -80 °C to -180 °C while ensuring highly controlled and repeatable freezing.

CRFs tightly manage the phase transition of samples from liquid to solid, preserving cell structure, function, and post-thaw viability by minimizing cellular stress and reducing the formation of intracellular ice. These freezers are well-suited for sensitive applications such as the cryopreservation of stem cells, immune cells, reproductive tissues, and cell and gene therapy products. In clinical and pharmaceutical settings, CRFs are often indispensable for meeting regulatory requirements, including GMP compliance, where standardization and traceability of the freezing process are mandatory.

While many CRFs leverage traditional liquid nitrogen injection as a cooling mechanism, newer designs incorporate conduction or forced-air systems to reduce infrastructure demands and mitigate safety risks associated with liquid nitrogen. Most modern CRFs also feature customizable and pre-programmed freezing protocols, along with integrated process monitoring, usage logging, and event tracking for robust documentation and process validation.

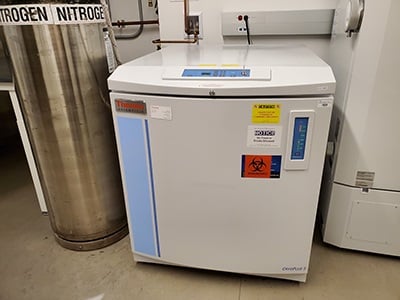

Cryogenic freezers

Cryogenic freezers provide some of the lowest attainable storage temperatures, typically ranging from below -100 °C to below -150 °C, depending on the system. They are used for long-term or indefinite preservation of biological or pharmaceutical samples, where maintaining molecular and structural integrity is critical.

Traditional cryogenic freezers maintain ultra-low temperatures by injecting cryogenic liquids into the cooling chamber, most commonly liquid nitrogen (LN₂), which has a boiling point of -195.8 °C. Integrated heat exchange systems and precision temperature sensors regulate thermal stability, ensuring consistent, long-term storage conditions for temperature-sensitive biological samples housed in these specialized containers.

An alternative to liquid cryogen-based systems is mechanical cryogenic freezers, which can reliably maintain stable temperatures around -150 °C. These freezers eliminate the need for a continuous liquid nitrogen supply and reduce safety risks associated with cryogen handling, including cold burns, asphyxiation, and pressure-related hazards. Other benefits include improved top-to-bottom temperature uniformity throughout the chamber when compared to tank-based LN₂ cryogenic freezers. Some mechanical cryogenic freezers may also offer a LN₂ backup system for increased security.

Some considerations in cold storage selection

Capacity

Capacity should be a primary consideration for cold storage. This specification is typically described in liters on product datasheets. Compact freezers generally offer less than 200 liters of internal volume and are ideal for easy access or space-limited applications, while high-capacity units can exceed 800 liters and are suited for large-scale biobanking or institutional storage needs.

Capacity may also be expressed in terms of the number of freezer racks or boxes the unit can accommodate, which provides a more practical measure of usable space. The number and configuration of internal shelves should also be evaluated, as adjustable or removable shelving allows for greater flexibility in organizing samples of varying sizes. Some models may include partitioned compartments or modular inserts to optimize storage density and minimize airflow disruption.

Cooling time

Freezer cooling time is a key performance specification that indicates how long a unit takes to reach its set operating temperature from ambient conditions. This metric is typically reported in minutes or hours and can impact workflow efficiency during maintenance or after extended open-door periods. For example, ultra-low temperature (ULT) freezers commonly range between 3 to 5 hours to cool from room temperature to -80 °C.

Door design

Door openings are a common source of transient thermal disturbances, making door design an important consideration in freezers, particularly cryogenic and ULT. The outer door handle is a high-contact component and should facilitate good ease of use while maintaining a secure seal. Robust latching mechanisms, such as claw latches, help ensure consistent compression and minimal cold air leakage. Some designs incorporate multiple gaskets to enhance sealing performance. For enhanced security and sample protection, locking features such as keylocks, padlock hasps, or integrated electronic locking systems may also be included.

The number of inner doors is typically listed on product specification sheets and is an important design feature for thermal stability. Inner doors significantly reduce temperature fluctuations during sample access by limiting exposure of the entire chamber to ambient air. When equipped with gaskets and latches, these doors provide an additional layer of sealing and protection against thermal intrusion. Multiple internal compartments further enhance sample protection by isolating sections of the freezer, minimizing the impact of each door opening.

Alarms and monitoring

Thermal fluctuations can cause irreversible damage to sensitive biological materials, with serious consequences in both clinical and research settings. To mitigate these risks, modern freezers often incorporate advanced real-time temperature monitoring systems. These systems continuously track internal chamber conditions and are equipped with visual, audible, and remote alarms to alert users in the event of temperature deviations, power failures, or doors left ajar.

A valuable feature to consider is the integration of remote monitoring systems, which continuously assess key parameters such as temperature, humidity, door status, and power supply. Many contemporary platforms offer internet-enabled remote access and real-time control, allowing researchers and facility managers to monitor storage conditions from virtually anywhere.

Beyond basic alerts, advanced monitoring solutions can provide predictive analytics to detect early signs of mechanical or environmental failure, enabling proactive maintenance and preventing costly emergencies. These systems not only enhance sample protection and operational efficiency but are also increasingly mandated by insurers and regulatory bodies, especially in pharmaceutical and FDA-regulated laboratories where continuous data logging and audit-ready compliance are essential.

Other features

Some additional features can enhance the reliability and usability of freezers. Battery backup systems ensure that critical functions remain operational during power outages, such as the control panel and alarm notifications. For extended protection, some models offer CO₂ or LN₂ backup cooling, which helps maintain internal temperatures until power is restored. Other useful options include sample ports for independent temperature probes and software-enabled capabilities such as remote operation, system diagnostics, and integration with laboratory automation platforms.

References

Sebastian J. Cold Storage Solutions for Life Science Laboratories. Biocompare. Published July 23, 2024. Accessed July 2025.

Kent‑Webb H. Lab Freezer Selection and Failure Prevention. Biocompare. Published January 19, 2023. Accessed July 2025.

Mason E. Make Your Lab More Sustainable with Greener Cold Storage. Biocompare. Published May 9, 2023. Accessed July 2025.

Kypraiou C, Varzakas T. Evolution and Evaluation of Ultra-Low Temperature Freezers: A Comprehensive Literature Review. Foods. 2025; 14(13):2298. https://doi.org/10.3390/foods14132298

Mason E. Buyer’s Guide to ULT Freezers. Biocompare. Published March 2022. Accessed July 2025.

Utah State University. Liquid Nitrogen. Utah State University Office of Research Environmental Health & Safety. Published n.d. Accessed July 2025.
