Spectrophotometry: Principles, Applications, and Innovations

Spectrophotometers are essential laboratory instruments used to analyze biological samples by measuring light interactions such as absorbance, reflectance, transmittance, and fluorescence. They vary based on their capabilities, with UV-Vis spectrophotometers covering wavelengths from 190 to 900 nm and UV-Vis-NIR models extending into the near-infrared range up to 2600 to 3300 nm. Fluorescence spectrophotometers detect emitted light and are often used in cellular probes and biochemical assays; microvolume spectrophotometers are ideal for analyzing small sample amounts, such as for nucleic acid or protein quantification; and microplate spectrophotometers are designed for samples distributed in 96- or 384-well plates and can help increase the throughput of experiments.

Choosing a spectrophotometer

Selecting the right spectrophotometer requires thorough investigation and careful consideration. When making a decision, key factors to consider include:

• Wavelength range
• Accuracy and precision
• Resolution and bandwidth
• Application-specific requirements
• Portability vs. benchtop models
• Data management and software integration
• Detection limits
• Ease of use and maintenance

It is advisable to conduct a literature review at the start of the search to find out what types of instruments are being used for similar applications. Then discuss any specific needs with instrument providers to ensure what seems like the best spectrophotometer aligns with lab's requirements.

It is also recommended to request application and technical notes and arrange a demo with representative samples. Confirming the availability of technical support and training services helps ensure continued assistance and peace of mind post-purchase.

Troubleshooting tips

Spectrophotometers are typically reliable instruments, but occasional issues can arise that affect the accuracy of measurements. When inconsistencies occur, they usually stem from three main sources:

• Sample-related problems

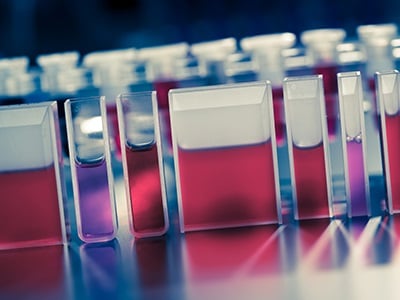

• Issues with the cuvette
• Malfunctions in the instrument itself

Tips on improving sample prep and fixing cuvette errors can be found here.

Identifying the root cause of instrument errors in spectrophotometry can be challenging due to the unique characteristics of each device. When faced with an unfamiliar issue, consulting the instrument's manual is often the best first step.

Proper operation and maintenance are critical. By following the manufacturer's guidelines for use and upkeep, many common problems can be avoided. Regular calibration is essential, as is timely replacement of components such as lamps, filters, and vacuum pumps.

Applications

Spectrophotometers are frequently used to determine nucleic acid concentrations. This method offers several advantages: it doesn’t require reagents, and it can quantify nucleic acids using sample volumes as small as 1 µL, making it efficient and resource-friendly.

Spectrophotometers are also commonly used to quantify and characterize proteins. This approach is simple and efficient, making it ideal for quickly estimating protein concentrations.

Outside of DNA or protein quantification, spectrophotometry is also used in analytical testing for drug compound identification, drug purity assays, as well as monitoring bacterial growth and analyzing microbial characteristics.

High-throughput advances

Across the life sciences, high-throughput methods have triumphed over low-throughput techniques by allowing the quick and sensitive analysis of multiple samples simultaneously. By offering increased efficiency and cost-effectiveness, high-throughput spectrophotometry has the potential to transform many biomedical applications.

"Advances in assays, instrumentation, and analysis tools have greatly expanded our ability to collect and interpret data on larger and larger scales,” explains Rachel Kennel, DeNovix Application Scientist. One example is in high-throughput UV-Vis spectrophotometry, which enables the rapid and accurate quantification of multiple DNA samples—an essential quality control step in “many workflows, including genetic sequencing.”

"Automation, combined with plate reader technologies, enables quantification on a massive scale of multiple 96- or 1536-well plates at a time. Even a more middle-throughput option like an 8-channel spectrophotometer can expand a lab's QC capabilities and act as a stepping stone to higher throughput scales,” Kennel adds.

Kennel explains that the new DeNovix DS-8X Eight Channel Spectrophotometer does just that. Developed to deliver high-performance, GxP-compliant, full-spectrum UV-Vis analysis, the DS-8X is ideal for fast and reliable nucleic acid and protein quantification—measuring eight samples in ~10 seconds. “The introduction of the DS-8X expands the popular DS-Series range for those labs looking for higher throughput, and where confidence in the quality of each measurement is paramount,” said Andrew Jones, Market Development Manager of DeNovix. “The ease of use for a range of sample types, compact footprint, and option of including fluorescence measurements to the package make this a comprehensive solution for sample quality control.”

Although high-throughput spectrophotometry offers many advantages, the increased data generated from the greater sample analysis can present challenges. “Massive amounts of data are produced by high-throughput methods,” explains Kennel. “While AI-powered analysis tools help with this, this is not available for many techniques and scientist input is still required.” As Kennel continues “managing data output and organizing results in such a way as to be readable is an important step in advancing these high-throughput techniques, and this is going to vary from application to application.”

Spectrophotometry is an indispensable tool in the life sciences, offering a myriad of applications from nucleic acid and protein analysis to drug compound identification and bacterial growth monitoring. The advent of high-throughput spectrophotometry has enabled rapid and simultaneous analysis of multiple samples, thus increasing efficiency and cost-effectiveness. As the technology continues to advance, addressing challenges such as data management and interpretation will be crucial for fully harnessing the potential of high-throughput spectrophotometric techniques.
