Published customer image:
Pacific Blue conjugated Mouse anti Canine CD4 antibody, clone YKIX302.9 used for evaluation of CD4 expression on canine cells by flow cytometry.
Image caption:
CD11b+CD14-MHCII- cells suppress T cell proliferation. Facs sorted CD11b+CD14-MHCII- cells isolated from a dog with osteosarcoma or healthy PBMCs were co-incubated with mitogen-stimulated CD4+ and CD8+ T cells isolated from a healthy dog for 72 hrs. No stimulated cells were used as negative control. Proliferative responses were measured by 3H-thymidine incorporation from experiments performed in triplicate. CPM, counts per minute. Mean +/- SEM are shown.
From: Goulart MR, Pluhar GE, Ohlfest JR (2012)
Identification of Myeloid Derived Suppressor Cells in Dogs with Naturally Occurring Cancer.
PLoS ONE 7(3): e33274.

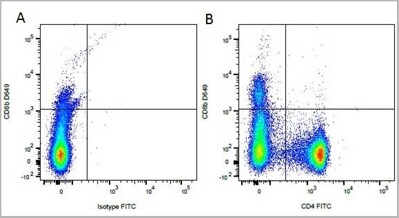

Figure A. Purified Mouse anti Canine CD8b detected with Goat anti Mouse IgG1 DyLight 649 and Rat IgG2b FITC isotype control . Figure B. Purified Mouse anti Canine CD8b detected with Goat anti Mouse IgG1 PE and Rat anti Canine CD4 FITC . All experiments performed on red cell lysed canine blood gated on mononuclear cells.

Figure A. A488 conjugated Rat anti Canine CD4 and purified Mouse IgG1 isotype control detected with Goat anti Mouse IgG1 DyLight 649 . Figure B. A488 conjugated Rat anti Canine CD4 and purified Mouse anti Canine CD8b detected with Goat anti Mouse IgG1 DyLight 649 . All experiments performed on red cell lysed canine blood gated on mononuclear cells.

Figure A. RPE conjugated Mouse anti Canine CD5 and A647 conjugated Rat IgG2a isotype control . Figure B. RPE conjugated Rat anti Canine CD5 and A647 conjugated Rat anti Canine CD4 . All experiments performed on red cell lysed canine blood gated on mononuclear cells.
